Aerial Equipment

45' BOOM (gas/lpg)


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: GENIE

Model: Z-45

4 Hour: $240.00

Daily: $332.00

Monthly: $1,825.00

Quantity: for a period of
4 hour(s) day(s) month(s)

City Rentals does not provide Personal Fall Protection Equipment (PFPE) with this Mobile Elevated Work Platform (MEWP). It is the Customer's responsibility to provide ANSI approved PFPE in accordance with OSHA regulations and the ANSI Z359 Fall Protection Code. It is also the Customer's further responsibility to ensure that all operators are MEWP QUALIFIED in accordance with ANSI/SIA A92.
WEIGHT: 16,312#
WORKING HEIGHT: 51' 3"
PLATFORM HEIGHT: 45' 3"
STOWED HEIGHT: 6' 7"

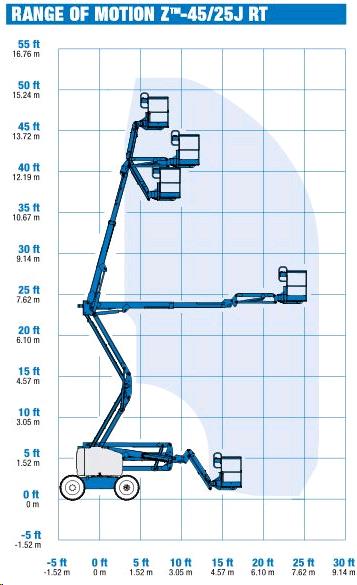

MAX HORIZONTAL REACH: 25' 3"
WIDTH: 5' 9"
STOWED LENGTH: 22' 3"
MAX LOAD CAPACITY: 500#
WHEELBASE: 6' 8"
GROUND CLEARANCE: 7"
PLATFORM: 72" x 30"
FUEL TANK CAPACITY (GASOLINE): 17.0 GALLONS
APPROXIMATE FUEL CONSUMPTION RATES -
GASOLINE:
RUN TIME @ 100% = 3.3 HRS (4.33 GAL PER HR)
RUN TIME @ 50% = 12.5 HRS (1.14 GAL PER HR)
RUN TIME @ IDLE = 30.8 HRS (0.46 GAL PER HR)
LPG:
RUN TIME @ 100% = 2.0 HRS (4.5 GAL PER HR)
RUN TIME @ 50% = 6.8 HRS (1.32 GAL PER HR)
RUN TIME @ IDLE = 16.69 HRS (0.53 GAL PER HR)

* Prices are subject to change.

* Please call us for any questions on our 45 foot boom gas/lpg in Ontario CA and the surrounding communities throughout the Inland Empire.
